Dipped Galvanized Wire for Fencing, Mesh & Construction Applications

Dipped Galvanized Wire is made from low-carbon steel and coated with a uniform zinc layer for corrosion resistance and long service life. It is widely used in construction binding, fencing, agriculture, crafting, and industrial mesh production. Classified into electro-galvanized and hot-dipped galvanized types, it offers soft, medium, and high-tensile options to meet different strength and flexibility needs. The wire provides stable performance, easy processing, and reliable protection in both indoor and outdoor environments.

Specifications

• Wire Diameter Range: 0.20 mm–5.00 mm for fine to heavy-gauge applications.
• Zinc Coating Thickness: 10 g/m²–250 g/m² for varying corrosion protection levels.
• Tensile Strength Levels: 350–700 MPa covering soft, medium, and high-tensile grades.
• Material Wire Rod: Q195/Q235 low-carbon steel commonly used for drawing.
• Coil Weight Options: 10–800 kg coils suitable for manual or machine processing.
• Coil Inner Diameter: 350–600 mm inner diameter compatible with feeding equipment.
• Coil Outer Diameter: 800–1200 mm outer diameter depending on wire gauge.
• Surface Coating Type: Electro-galvanized or hot-dipped galvanized zinc coatings.
• Elongation Performance: 8%–15% elongation ensuring flexibility and formability.
• Packaging Formats: Plastic film, woven bags, pallets, or bulk coils in 5–500 kg bundles.

Features of Dipped Galvanized Wire

• Hot-dip zinc coating forms a thick, metallurgically bonded protective layer
• Superior corrosion resistance for outdoor, humid, and coastal environments
• High durability and abrasion resistance compared with electro-galvanized wire
• Good tensile strength and flexibility for bending, twisting, and weaving
• Uniform surface finish ensures stable quality and easy fabrication
• Long service life with low maintenance and excellent cost performance

Applications of Dipped Galvanized Wire

• Fencing products: chain link fence, barbed wire, razor wire, field fence
• Wire mesh manufacturing: welded wire mesh, woven mesh, gabion mesh
• Construction use: binding wire, tying wire, reinforcement fixing
• Agricultural use: livestock fencing, vineyard wire, trellis systems
• Industrial uses: fastening, bundling, and corrosion-resistant wire components

Dipped galvanized wire is widely used in fencing, construction, agriculture, and industrial applications where long-term rust protection and mechanical reliability are required.

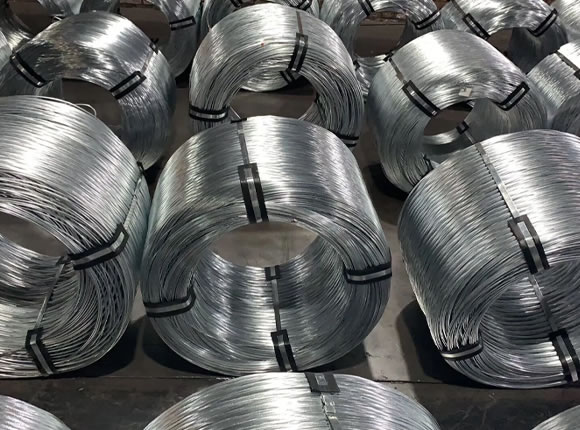

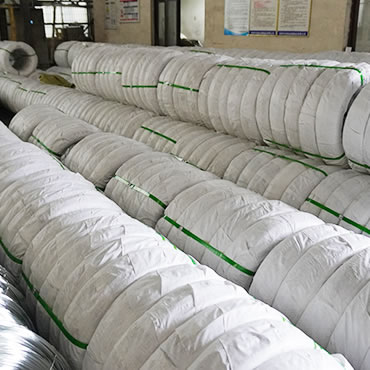

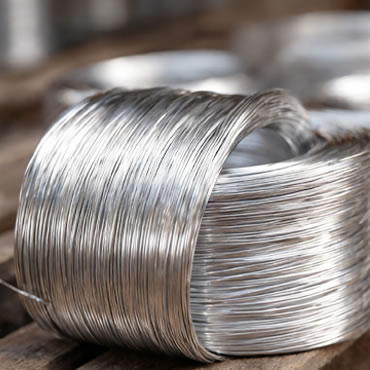

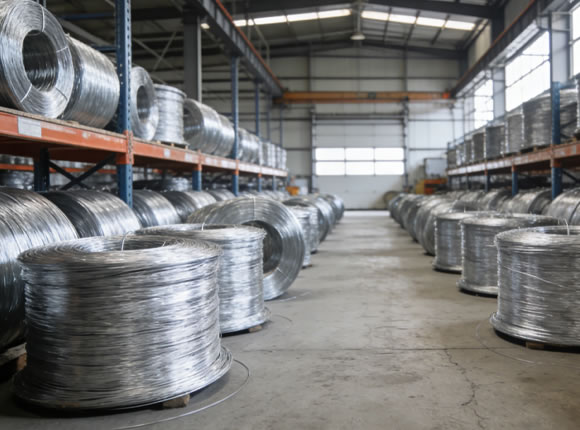

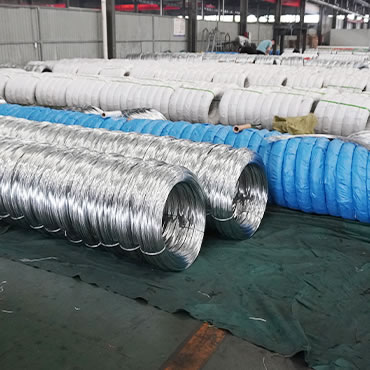

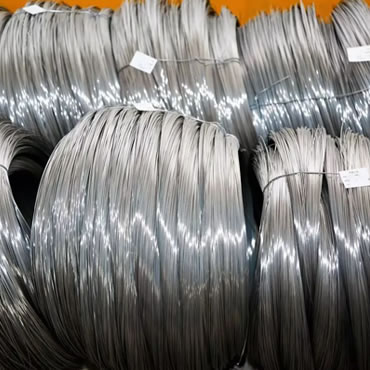

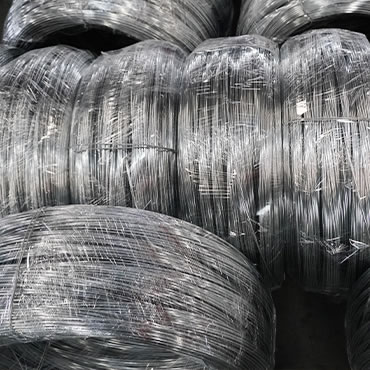

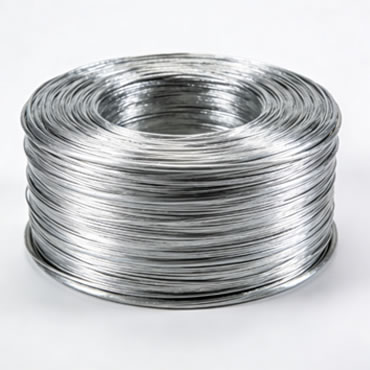

Product Images
