Concertina Razor Wire of BTO and CBT Types

Razor wire is manufactured from high-tensile galvanized steel wire or stainless steel wire with sharp steel barbs. It is widely used for high-security fencing on prisons, military bases, borders, airports, industrial zones, and private properties. Classified as concertina razor wire, flat wrap razor wire, or straight razor wire, and further by blade type such as BTO or CBT, razor wire provides strong deterrence, durability, and effective anti-climb protection for security and perimeter control applications.

Specifications

• Core Wire Diameter: Typically 2.5–3.0 mm high-tensile galvanized or stainless steel wire.
• Blade Thickness: Standard blade thickness ranges from 0.5–0.6 mm.
• Blade Length: Common blade lengths include 10–65 mm, depending on BTO or CBT type.
• Blade Spacing: Blade spacing generally ranges from 26–100 mm for security levels.
• Coil Diameter: Concertina coil diameters range from 300–1000 mm.
• Coil Length (Extended): Extended coil length typically 6–15 m per coil.
• Razor Wire Types: Common types include BTO-10, BTO-22, CBT-60, CBT-65.
• Number of Loops: Standard loops per coil range from 30–56 loops.
• Tensile Strength: Core wire tensile strength usually 1200–1400 MPa.
• Surface Treatment: Available in hot-dip galvanized or stainless steel finishes.
• Weight per Coil: Typical coil weight ranges from 5–15 kg.
• Packaging Size: Packed in compressed coils with outer diameter about 450–750 mm.

Features

• High Security Deterrence: Sharp razor blades create a strong physical and visual barrier against intrusion.
• High-Tensile Core Wire: Reinforced steel core provides excellent strength and resistance to cutting or deformation.
• Durable Materials: Manufactured from galvanized steel or stainless steel for long-term outdoor use.
• Multiple Blade Types: Available in BTO and CBT blade profiles to meet different security levels.
• Flexible Installation: Can be installed as concertina coils, flat wrap, or straight-line razor wire.
• Corrosion Resistance: Hot-dip galvanizing or stainless steel construction resists rust and weathering.
• Low Maintenance: Requires minimal upkeep after installation, reducing long-term security costs.
• Wide Application Compatibility: Easily integrated with fences, walls, gates, and security systems.

Applications

• Prisons and Correctional Facilities: Used to secure perimeters and prevent climbing or unauthorized access.
• Military Bases and Defense Sites: Installed for high-security protection of sensitive military areas.
• Border and Checkpoint Security: Applied along borders and checkpoints to deter illegal crossings.
• Airports and Transportation Hubs: Used to protect restricted zones, runways, and secure boundaries.
• Industrial and Power Plants: Installed around factories, refineries, and power facilities for asset protection.
• Residential and Commercial Properties: Used on walls and fences to enhance perimeter security.
• Warehouses and Logistics Centers: Applied to prevent theft and unauthorized entry in storage areas.
• Government and Public Facilities: Used to secure embassies, government buildings, and critical infrastructure.

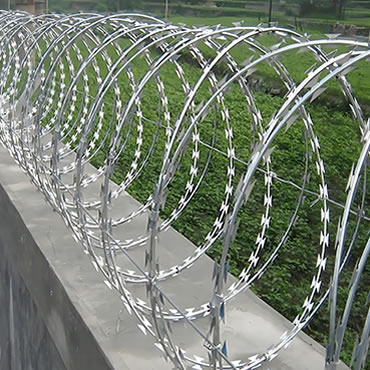

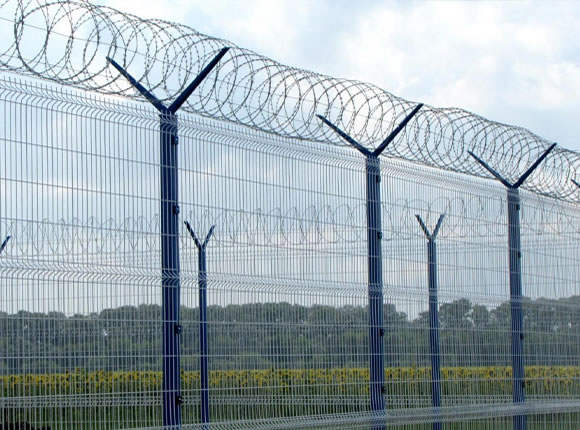

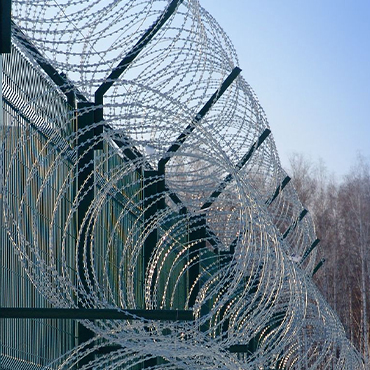

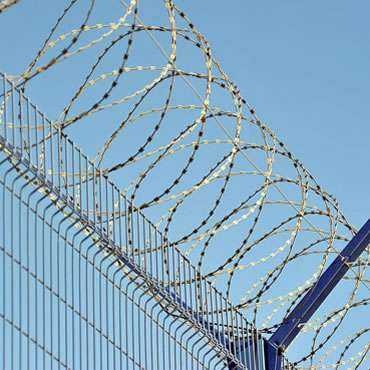

Product Images
