High-Security Anti-Climbing Fence Panels with Welded Mesh Design

Anti-climbing fence is manufactured from high-tensile low-carbon steel wire, typically finished with hot-dipped galvanizing or PVC coating for corrosion resistance. Featuring a dense welded mesh structure, it prevents cutting, climbing, and footholds. It is widely used for prisons, airports, railways, power plants, and industrial facilities. According to mesh structure and security level, anti-climb fencing is classified into 358 security fence, anti-climb welded mesh panels, and high-security perimeter fencing systems.

Specifications

• Wire Material: Low-carbon steel wire or high-tensile steel wire for security fencing
• Wire Diameter: 3.0–6.0 mm, commonly 4.0 mm or 5.0 mm
• Mesh Opening Size: 76×12.7 mm, 75×12.5 mm, or 75×25 mm anti-climb mesh
• Panel Width: 2.0–3.0 m, typically 2.2 m, 2.5 m, or 3.0 m
• Panel Height: 1.8–5.2 m for medium to high security use
• Surface Treatment: Hot-dipped galvanized, galvanized plus powder coated, or PVC coated
• Zinc Coating Weight: 80–300 g/m² corrosion protection
• Powder Coating Thickness: 60–120 μm polyester coating
• Manufacturing Process: Wire drawing, straightening, welding, cutting, coating
• Post Size and Thickness: 60×40 mm, 80×60 mm, or 100×60 mm posts, 2.0–3.0 mm thick
• Fixing Method: Anti-tamper clamps, security bolts, or concealed fixings
• Fence Classification: 358 mesh fence, welded anti-climb fence, high-security perimeter systems

Features

• Anti-Climb Mesh Design: Small welded apertures prevent finger and toe holds
• High-Cut Resistance: High-tensile steel wire resists cutting and intrusion
• Superior Perimeter Security: Strong barrier for high-risk and restricted areas
• Corrosion-Resistant Finish: Galvanized and powder coated surfaces resist rust
• Rigid and Stable Structure: Heavy wire and reinforced posts improve strength
• Anti-Tamper Fixings: Concealed or security bolts prevent panel removal
• Clear Visibility: Flat mesh allows effective surveillance and monitoring
• Long Service Life: Durable materials ensure extended outdoor performance

Applications

• Prison and Correctional Facilities: Prevents escape and unauthorized access in detention areas
• Airports and Aviation Security: Secures airport perimeters and restricted zones
• Power Plants and Utilities: Protects substations and critical energy infrastructure
• Railway and Metro Lines: Prevents track access, vandalism, and safety risks
• Industrial and Manufacturing Sites: Secures factories, warehouses, and logistics areas
• Government and Military Areas: Provides high-level security for sensitive facilities
• Data Centers and Critical Infrastructure: Restricts access to telecom and data facilities
• Border and High-Security Perimeters: Used for border control, ports, and restricted zones

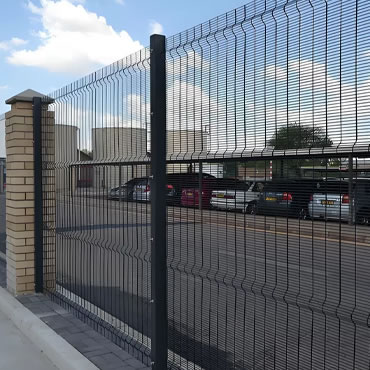

Product Images
