Welded Wire Mesh Panels and Rolls for Construction, Fencing & Industry

Welded wire mesh is manufactured by resistance-welding steel wires at uniform intersections to form strong, rigid mesh panels or rolls. Common materials include low-carbon steel, galvanized steel, and stainless steel for enhanced corrosion resistance. It is widely used in concrete reinforcement, fencing systems, agriculture enclosures, cages, and industrial safety barriers. Welded wire mesh is classified by wire diameter, mesh opening size, panel or roll form, and surface treatment such as electro-galvanized or hot-dipped galvanized finishes.

Specifications

• Materials: Low-carbon steel (Q195/Q235), galvanized steel, stainless steel 304/316.
• Wire Diameter: 0.6–12.0 mm wire sizes for light, medium, and heavy-duty applications.
• Mesh Opening: 6 × 6 mm to 200 × 200 mm openings for cages, fencing, and reinforcement.
• Panel Size: Standard panels in 1.0–2.5 m widths and 2.0–6.0 m lengths.
• Roll Size: Rolls available in 0.5–2.0 m widths and 10–50 m lengths.
• Surface Finish: Black, electro-galvanized, hot-dipped galvanized before or after welding.
• Manufacturing: Automatic resistance welding with uniform joints.
• Tensile Strength: Approx. 350–550 MPa depending on wire grade.
• Zinc Coating: 20–300 g/m² zinc for corrosion protection.
• Edge Type: Cut flush, trimmed, or framed edges.
• Applications: Concrete reinforcement, fencing, cages, agriculture, safety guards.

Features

• Strong welded joints provide high rigidity and load-bearing strength
• Uniform mesh openings ensure consistent quality and accurate dimensions
• Multiple material options including low-carbon steel, galvanized steel, and stainless steel
• Corrosion-resistant finishes such as electro-galvanized and hot-dipped galvanized
• Easy fabrication and installation with good cutting and bending performance
• Cost-effective and durable for long-term indoor and outdoor use

Applications

• Construction reinforcement for slabs, walls, and concrete structures
• Fencing and security including perimeter fences, partitions, and cages
• Agricultural use for livestock enclosures, poultry cages, and garden fencing
• Industrial protection such as machine guards and safety barriers
• Infrastructure and landscaping for gabions, retaining systems, and ground support

Welded wire mesh is widely used where strength, stability, and dimensional accuracy are required across construction, agriculture, and industrial applications.

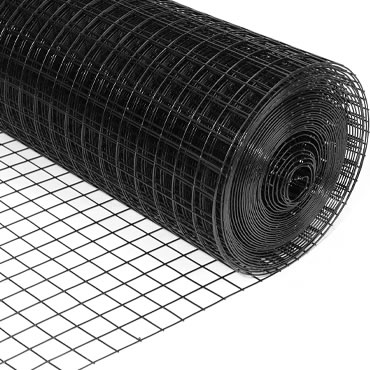

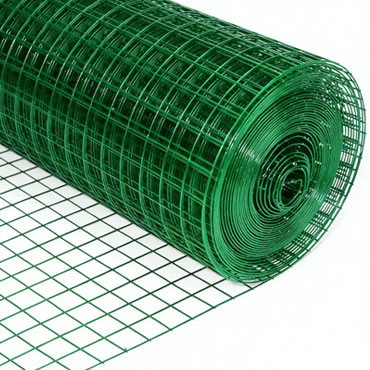

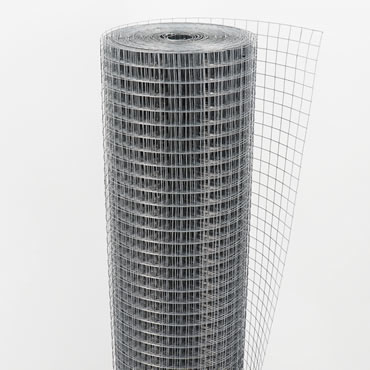

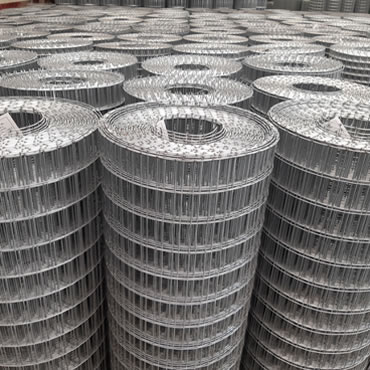

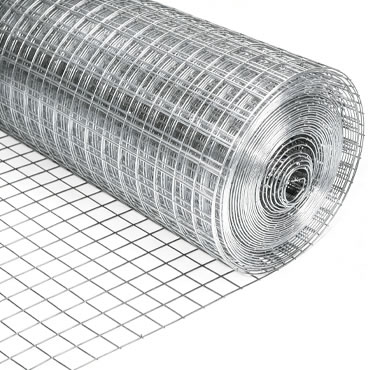

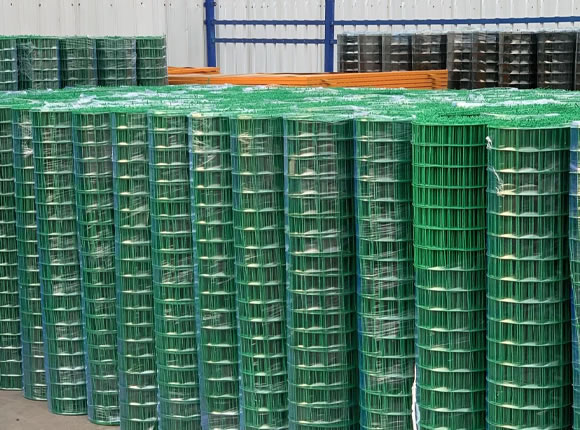

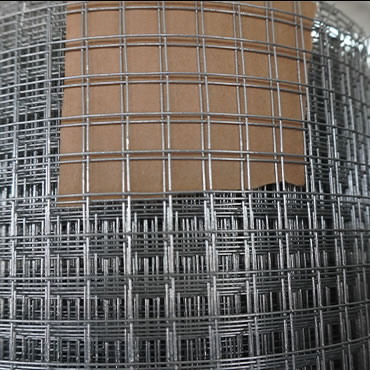

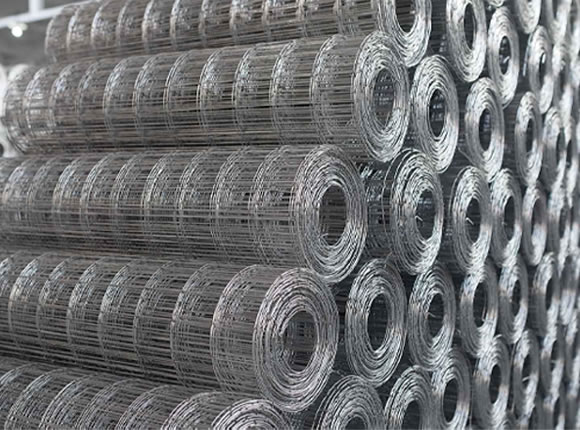

Product Images
