Barbed Wire for Agricultural Fencing and Perimeter Security

Barbed wire is manufactured from high-tensile low carbon steel wire with sharp barbs twisted along the strands. It is widely used for agricultural fencing, livestock containment, boundary demarcation, and security protection. Classified as single-strand or double-strand barbed wire, with two-point or four-point barbs, and available in galvanized or PVC-coated finishes, barbed wire offers durability, corrosion resistance, and cost-effective perimeter security for farms, industrial sites, and residential properties.

Specifications

• Line Wire Diameter: Common line wire diameters range from 1.6–3.0 mm (BWG 16–12).
• Barb Wire Diameter: Typical barb wire diameters range from 1.5–2.5 mm.
• Barb Length: Standard barb lengths are approximately 10–20 mm.
• Barb Spacing: Barb spacing usually ranges from 75–150 mm along the wire.
• Strand Type: Supplied as single-strand or double-strand twisted barbed wire.
• Barb Type: Available with 2-point or 4-point sharp barbs.
• Roll Length: Common roll lengths include 50 m, 100 m, 200 m, 400 m.
• Wire Gauge Range: Typical gauges range from BWG 12–BWG 16.
• Tensile Strength: Tensile strength generally ranges from 350–700 MPa.
• Zinc Coating Weight: Galvanized coating typically ranges from 30–260 g/m².
• PVC Coating Thickness: PVC coating thickness usually ranges from 0.4–1.0 mm.
• Roll Weight: Standard roll weight ranges from 5–25 kg, depending on size.

Features

• High Security Deterrence: Sharp barbs create an effective physical and visual barrier against intrusion.
• Strong Tensile Strength: High-tensile steel wire provides durability and resistance to stretching.
• Corrosion Resistance: Galvanized or PVC-coated finishes protect against rust and weathering.
• Cost-Effective Fencing: Provides reliable perimeter security at a low material and installation cost.
• Multiple Barb Configurations: Available with two-point or four-point barbs for different security levels.
• Flexible Installation: Can be easily installed on posts, fences, or walls in various terrains.
• Long Service Life: Durable materials ensure extended performance in outdoor environments.

Applications

• Agricultural Fencing: Used for livestock containment, farm boundaries, and pasture fencing.
• Boundary Demarcation: Defines property lines for rural, commercial, and industrial land.
• Perimeter Security: Applied to enhance security around industrial sites and warehouses.
• Residential Fencing: Used on walls and fences to deter trespassing in private properties.
• Temporary Fencing: Suitable for short-term fencing at construction and work sites.
• Military and Government Areas: Used for basic perimeter control in restricted zones.
• Roadside and Railway Protection: Installed along highways and railways for access control.
• Wildlife Control: Used to prevent animal intrusion in farmland and protected areas.

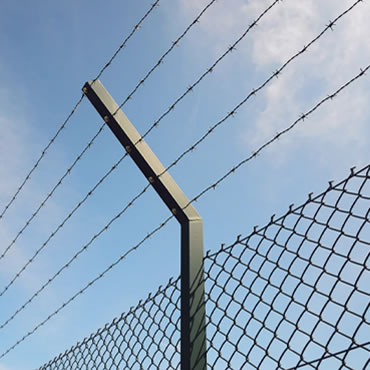

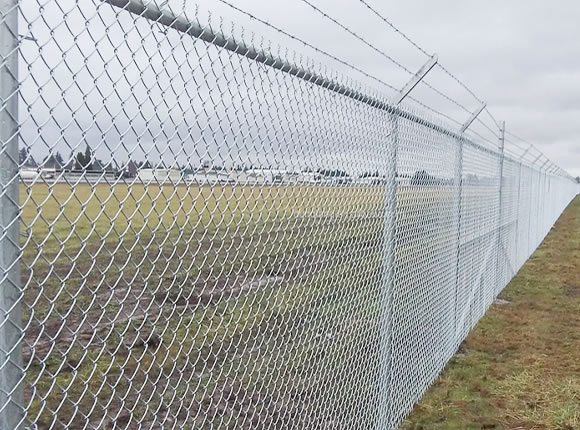

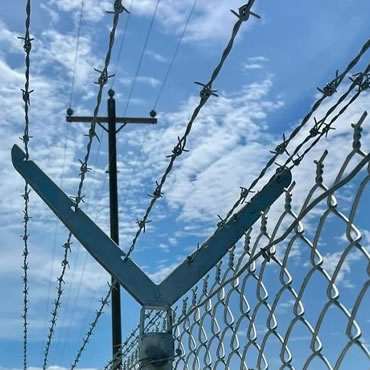

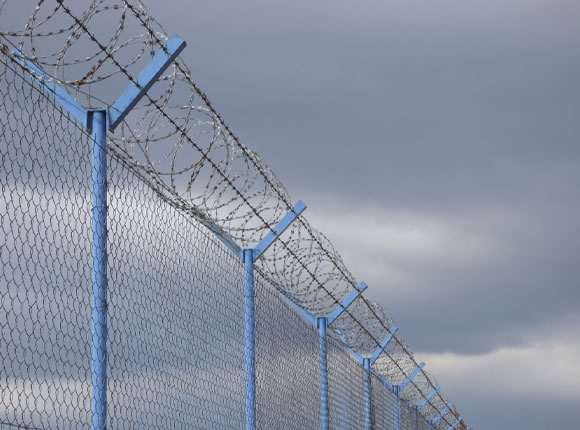

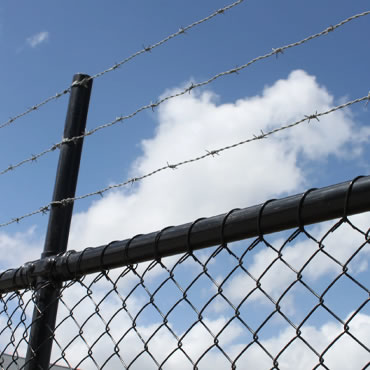

Product Images
